When the drawing says one diamond shape, but the delivered panel shows another, your entire facade can be rejected. Here is the exact 4 step pattern locking process we use to guarantee 100% consistency, panel after panel.
Trust & Credibility Snapshot
✅ ISO 9001:2015 certified since 2015 (Certificate No. xxx)
✅ 20 years – founded in 2004, solely focused on metal mesh
✅ 3 factories / 100+ machines – including 18 dedicated expanded metal press lines
✅ Exported to USA & EU for over a decade – full ASTM/EN compliance documentation available
✅ Technical team: 6 senior engineers with average 12 years of expanded metal die design experience
The Hidden Risk Behind “Beautiful” Expanded Metal Facades
Expanded metal mesh is now a go to material for modern architecture. It offers transparency, light control, texture, and stunning visual effects.
But there is a nightmare that every facade contractor and architect fears:
You design a unique diamond pattern with a specific open area and strand width. The pre production sample looks perfect. Then the full shipment arrives – and the holes are visibly different.
The rhythm of the pattern is off. The facade looks “noisy” instead of elegant. The project owner rejects everything.
This is not rare.
It happens when the manufacturer does not strictly control die tooling, feed rate, and expansion gap – or when they simply “eye ball” the drawing.
This case study shows exactly how Hightop Metal Mesh solved this problem for a US based architectural metal supplier. And we will show you how we guarantee pattern consistency for any expanded metal façade project – from prototype to full container load.
Client Background (Anonymized for Confidentiality)
Client type: Mid size architectural metal distributor in Texas, USA

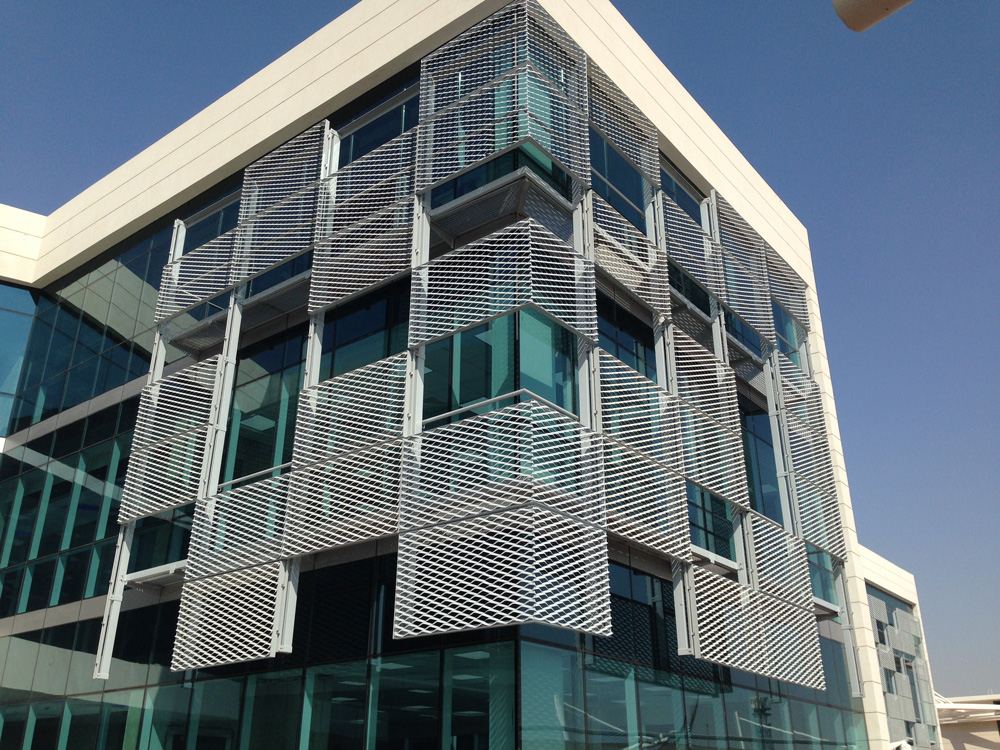

End user: New cultural center in Austin, with a 4,000 sq. ft. expanded metal sunshade facade

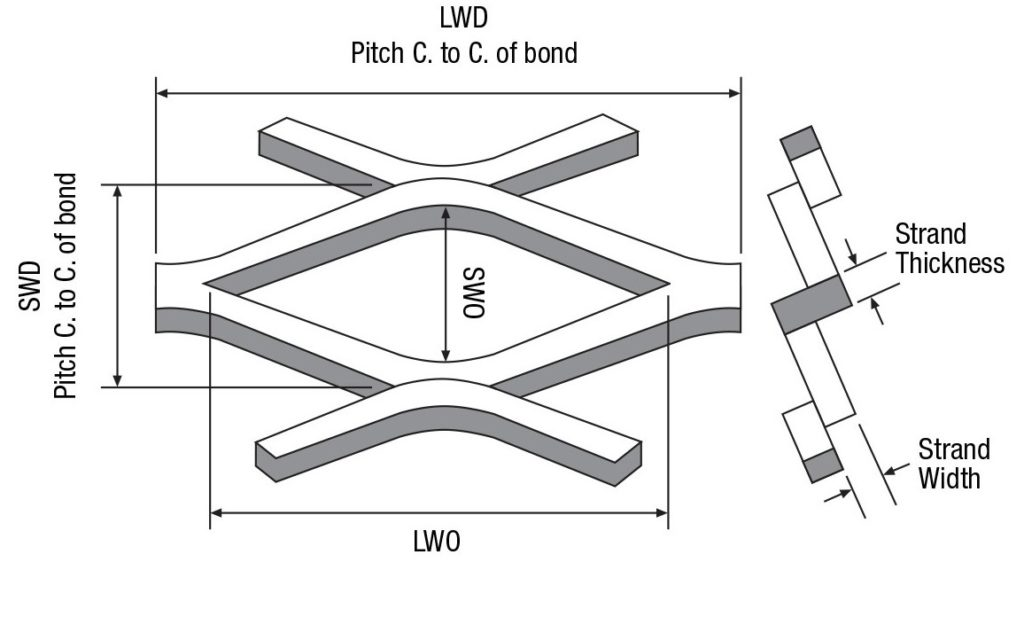

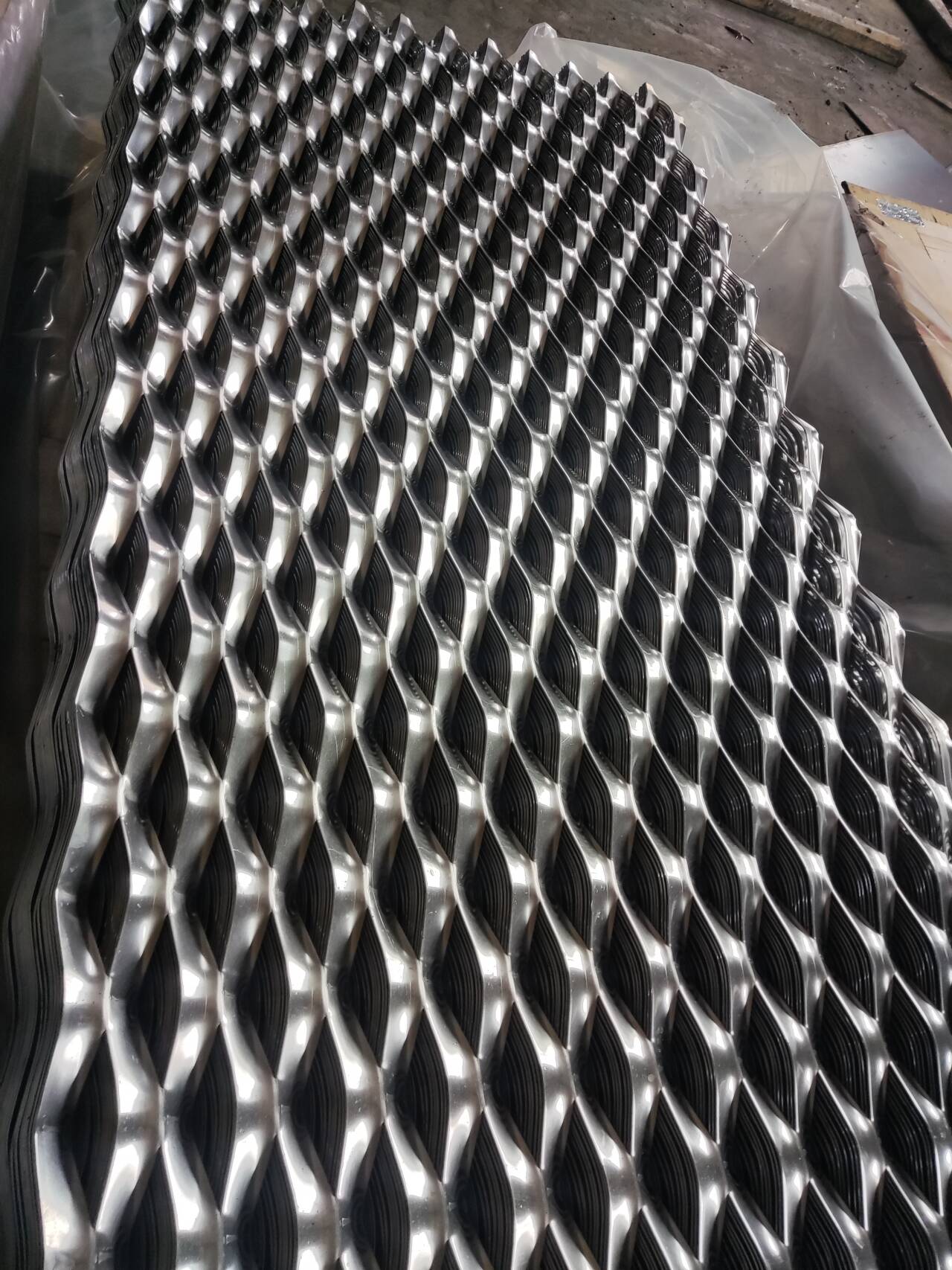

Original drawing specification:
| Parameter | Value | |
| Material | AL | |
| Pattern | Diamond | |
| Long pitch (LWD) | 50 mm | |
| Short pitch (SWD) | 25 mm | |
| Strand width |
|
|
| Open area | 42% | |
| Panel size | 1,200 mm × 2,400 mm |
The previous supplier’s failure
The client’s former supplier (from another Asian country) delivered one sample panel that matched the drawing.
But when the 200 panel order arrived:
- The diamonds were visibly wider
- The open area dropped to 38%
- The strands looked “heavy”
The architect rejected the entire shipment.
The client lost USD 38,000 and two months of project schedule.
They came to Hightop with one question:
“Can you guarantee that every panel will have exactly the same hole pattern as our drawing – not just the first piece?”
Technical Challenge – Why Pattern Mismatch Happens
Many expanded metal manufacturers treat each order as a “one off”. They use general purpose dies and adjust the machine feed rate by experience.
This creates three hidden risks:
| Risk | How It Destroys the Facade |
| Die wear | After 1,000 panels, the die opens slightly – diamond shape and open area change. |
| Feed rate variation | If feeding speed drifts, the short pitch (SWD) changes – pattern becomes “squashed” or “stretched”. |
| No first article inspection | Without documented approval, the factory runs full production before the customer confirms the pattern. |
For an architectural facade, even a 3% change in open area changes how light passes through. The human eye detects it immediately on a large elevation.
Our Solution – A 4 Step Pattern Locking Protocol
We do not “try to match the drawing”. We built a verification system that freezes the exact pattern from drawing to finished panel.
Step 1 – Drawing Translation into Machine Parameters
When the client sent us their original DWG file, our lead engineer converted every dimension into:
- Die geometry
- Feed rate
- Gap setting
Example from this project:
Desired LWD = 50 mm → determined required die width and stroke length
Desired SWD = 25 mm → required material feed per stroke (measured with ±0.15 mm tolerance)

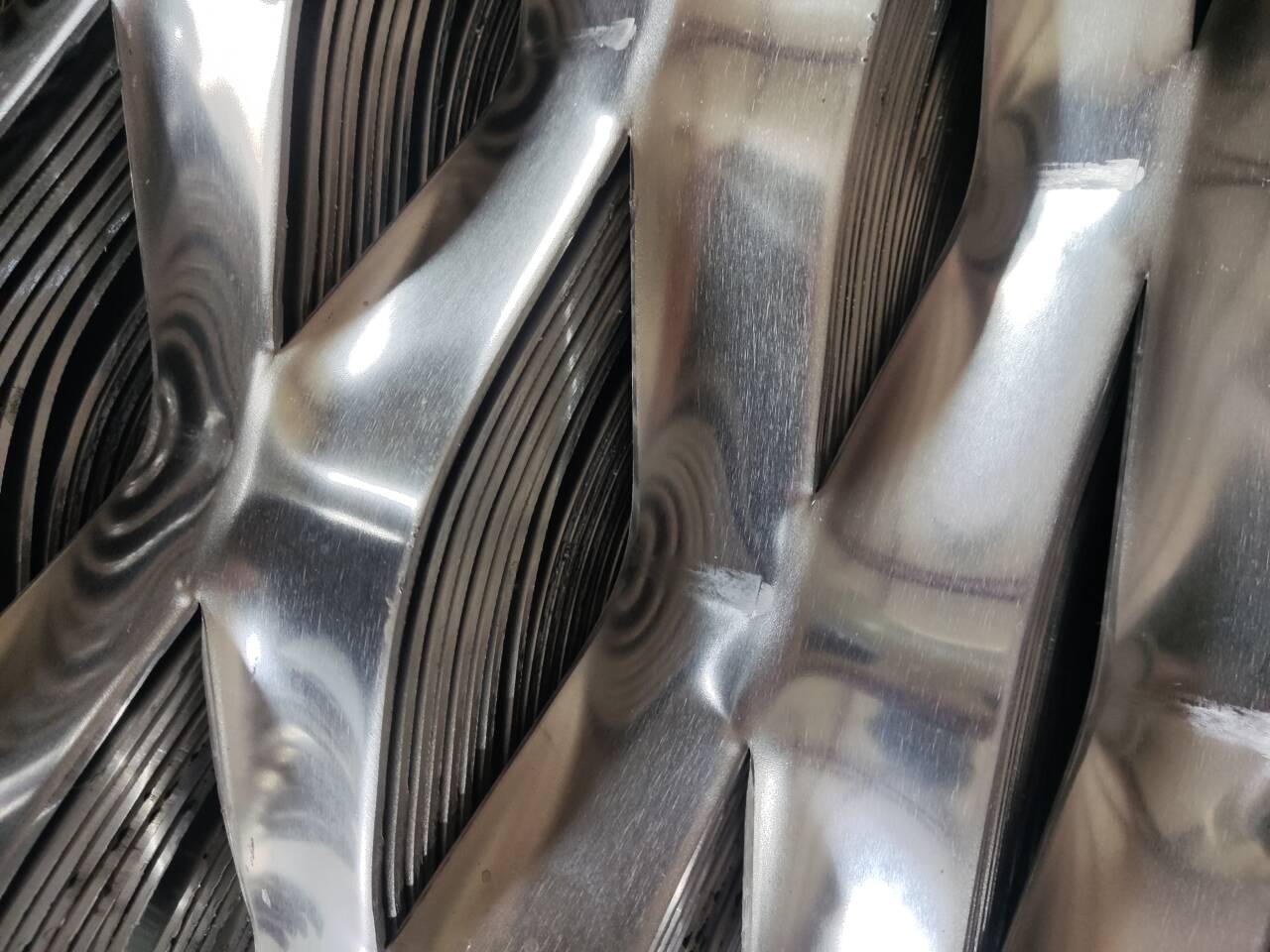

Strand width = 2.5 mm → determined by original sheet thickness and expansion ratio
We created an internal “pattern recipe card” that locks these three parameters. This card is stored for every unique pattern we ever produce.
Step 2 – First Article Sample & Dimensional Report
Before cutting any production panels, we produced one full size sample (1,200 × 2,400 mm) and measured:
- LWD and SWD at 12 random locations (using a calibrated optical comparator)
- Strand width (3 measurements per panel)
- Open area calculated from actual dimensions
- Flatness and twist (ASTM E1155)
We sent the client the sample together with a signed dimensional inspection report.
The report included a side by side photo: their drawing overlay on our actual sample.
Result: The client approved the sample within 48 hours. The pattern recipe card was sealed.
Step 3 – Production with In Process Pattern Checks
We assigned the order to one dedicated press line (one of our 100+ machines) – not to multiple lines.
Every 50th panel was pulled for pattern measurement
If the LWD drifted more than ±0.3 mm from the recipe card, the line stopped immediately for tooling adjustment
For this 200 panel order, we performed 4 in process inspections. All passed.
Step 4 – Final Packaging & Panel Labeling
Each panel was labeled with:
- Order number
- Panel sequence number
- Verified LWD / SWD (actual measured values)
We also packed the panels in interleaved stacks with edge protectors to avoid bending – because a bent expanded panel can visually “change” the pattern when installed.
The Result – 100% Pattern Consistency Across All 200 Panels
The client received the shipment in Houston six weeks after sample approval.
They randomly opened 10 panels and measured the pattern.
Every panel matched the approved sample within ±0.2 mm on both pitches.

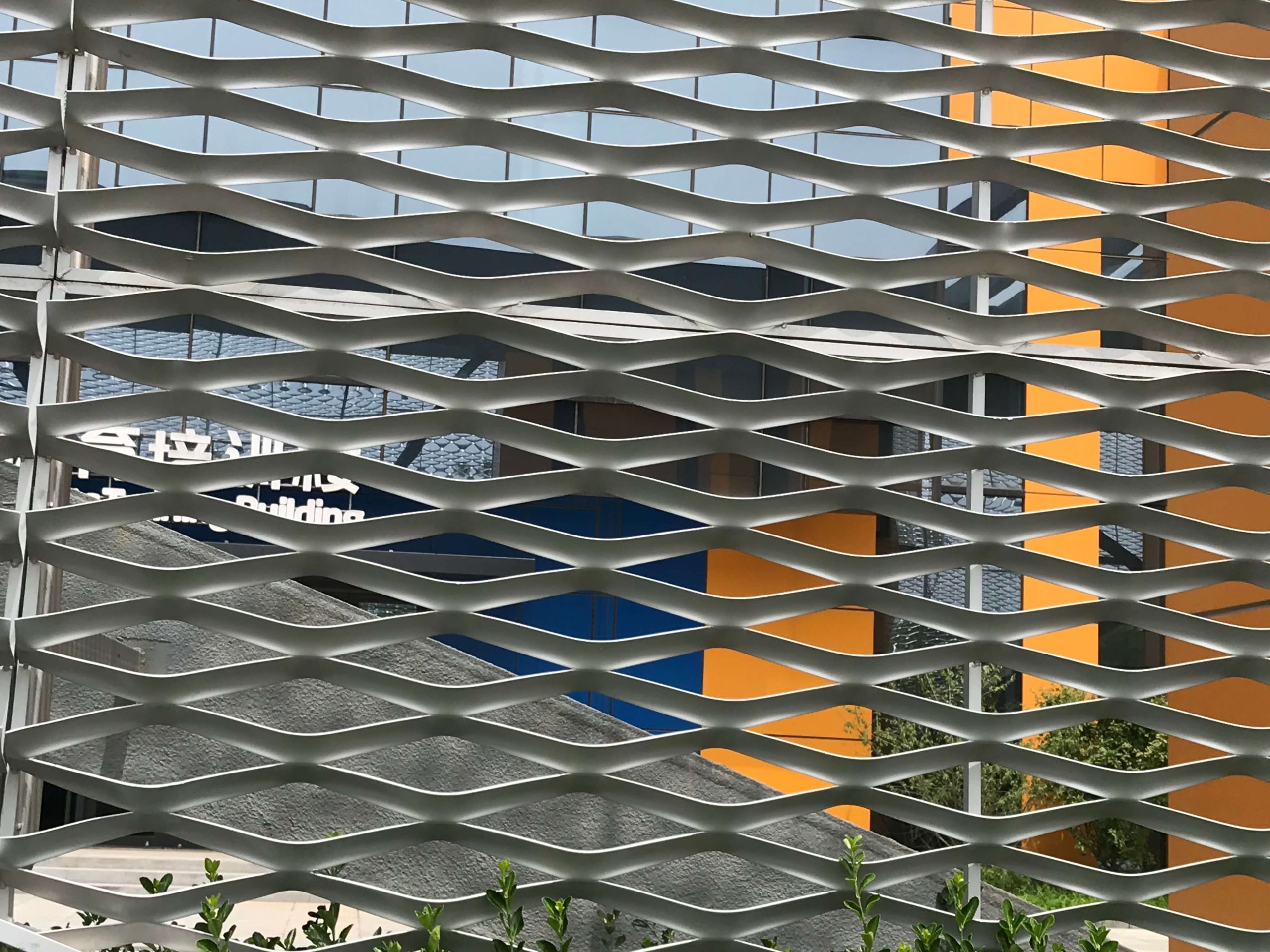

The end user (the cultural center) installed the facade without a single field modification.
Architect’s final comment:
“It looks exactly like the rendering – the light effect is perfect.”
Quantified outcome for the client:
- Zero rework or rejection
- Installation time reduced by 15%(no on site trimming)
- The client has since placed three repeat ordersfor other projects, totaling over 1,500 panels
What This Means for Your Expanded Metal Facade Project
If you are a facade contractor, architect, or architectural metal distributor, you can avoid the “pattern mismatch disaster” by asking your supplier three simple questions:
- Do you produce a full size first article sample and provide a dimensional report before production?
If they only send a small coupon – be careful. Small samples hide pattern variation over large panels. - Do you lock the machine parameters (die, feed rate, gap) to a recipe card that is not changed during production?
Without this, your second batch may look different from the first. - Do you perform in process pattern checks every 50 panels or less?
This catches drift before it becomes a container wide problem.
At Hightop Metal Mesh, we answer yes to all three – not as a sales promise, but as a documented procedure.
We have been producing expanded metal for 20 years, with ISO 9001:2015 certified processes across three factories and over 100 machines.
Your Next Step – Lock Your Pattern Before Production
We do not ask for large commitments to prove our accuracy. Here is how we can work together:
- Send us your drawing (DWG or PDF)– even a rough sketch. Our engineers will reply within 24 hours with a pattern feasibility analysis and a recommended machine setting.
- Request a first article sample– we will produce one full size panel and ship it to your office (sample cost deductible from first order).
- For distributors:We can store your “locked pattern” recipe card in our system, so every future reorder is identical – no requalification needed.
